Capabilities

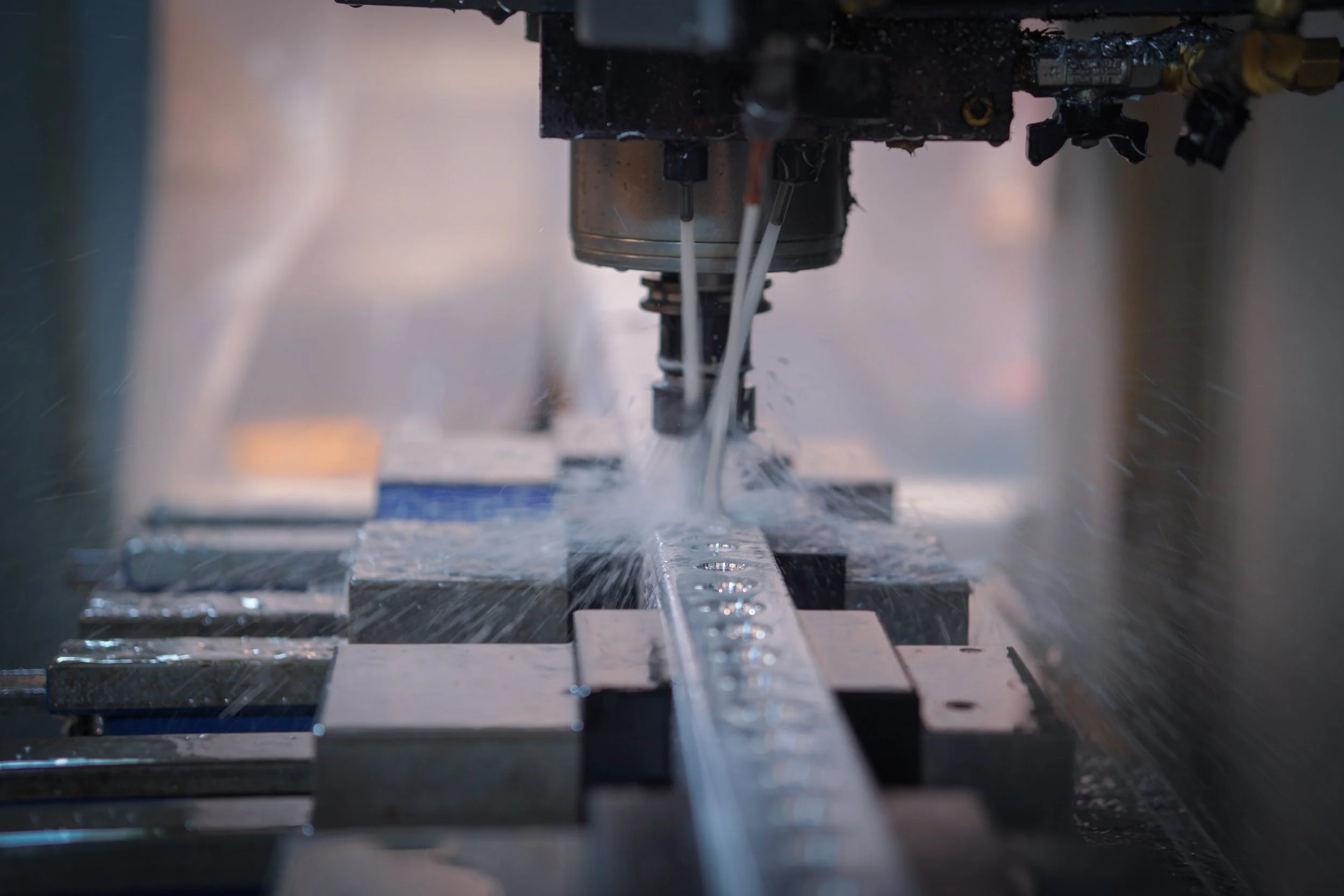

3,4, AND 5 AXIS CNC MILLING

Haas DT-1 Vertical Mill with 5th Axis

XYZ travel 20” x 16” x 15.5”
3.94 platter diameter
Max part swing 8.4”

Haas VF-2SS Vertical Mill with 4th Axis

XYZ travel 30” x 16” x 20”
8.3” platter diameter

Haas VF-4 Vertical Mill with 4th axis

XYZ travel 50” x 20” x 25”
6.3” platter diameter

Okuma M560 Vertical Mill

XYZ travel 41" x 22" x 18"

Okuma M660 Vertical Mill

XYZ travel 59” x 26” x 26”

Okuma MB-4000H Horizontal Mill with 6APC

XYZ travel 22.05” x 22.05” x 24.61”
Rotary Pallet Size 15.75” x 15.75”
6 pallets

Okuma MB-4000H - Zimmer Design & Manufacturing

CNC TURNING

Haas ST-20 Lathe with parts catcher

Max Part swing 21”
Max cutting Diameter 13”
Max cutting length 20”

Okuma LB3000EXII/800MYW with Live tooling/sub spindle/parts catcher

Max Part swing 23”
Max cutting Diameter 13.5”
Max cutting length 37”

Okuma LB3000EXII/800MYW - Zimmer Design & Manufacturing

WIRE EDM

Makino SP43 Wire EDM

Max travel 18” x 12” x 12.8”
.008” - .012” Wire

Design/Reverse Engineering

Solidworks and Keyence XM-5000

Can create solid models and blue prints using SolidWorks 2024
Inspect and reverse engineer (in house or on site)
Measuring range of 3.3 feet x 6.6 feet at a distance of 3.9 feet

METAL FINISHING

We work side by side with local vendors to provide a wide array of finishes, including but not limited to; anodizing, bright nickle, passivation, chem polish, acid etch, painting, plating, and powder coat.

We also have inhouse part tumbling, sand blasting, and ultrasonic cleaning.

HEAT TREAT

Having our own heat treat oven in house, we can easily offer processes including but not limited to; hardening, annealing, temper, stress relieve, nitride, and carburizing (case hardening).
